Tubería de acero de la aleación
>
|
| Lugar de origen | China |
| Nombre de la marca | Kasugai |
| Certificación | ISO PED AD2000 |
| Número de modelo | ASTM A335 P11 ASME B36.10M/B36.19M ERW WLD |
| Documento | Manual del producto PDF |

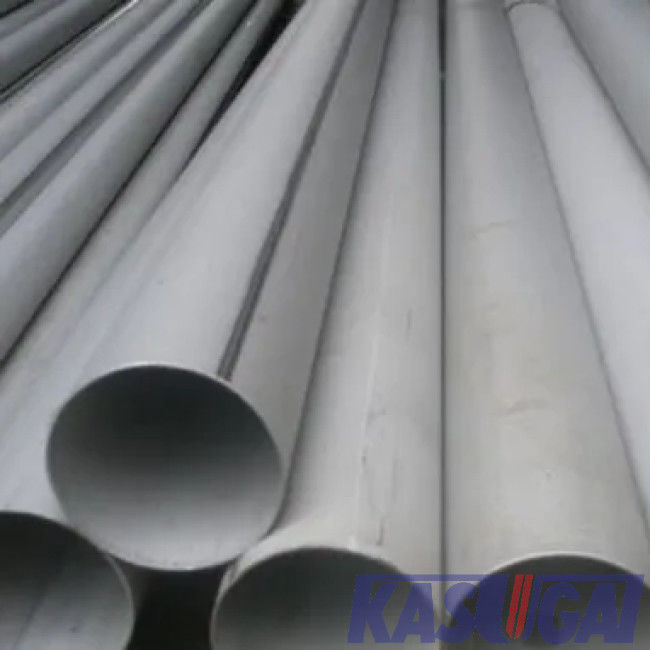

Tubo soldado con autógena de acero poco aleado de ASTM A335 P11 ASME B36.10M/B36.19M ERW
Información de producto:
| Nombre de producto | Tubo soldado con autógena de acero poco aleado de ASTM A335 P11 ASME B36.10M/B36.19M ERW |
| Estándares | ASTM A335/A335M, ASME SA335 |
| Gama de tallas | 1/8 ″ 48 al ″ |
| Grueso de pared | Sch5S, Sch10S, Sch10, Sch20S, Sch30, Sch40S, STD, Sch40, Sch60, Sch80S, XS, Sch80, Sch100, Sch120, Sch140, Sch160, XXS |
| Longitud | S.r.l., DRL, o como requisito de cliente |
| Proceso del final | Extremos llanos, extremos biselados, extremos roscados |
Composición química del acero de aleación de ASTM A335 P1 (%)
| Grado | C | Manganeso | P | S | Si | Cr | MES | Otros |
| P11 | 0.05~0.15 | 0.30~0.60 | ≤0.025 | ≤0.025 | 0.50~1.0 | 1.0~1.5 | 0.44~0.65 |
*Ni (≤0.4), Al (≤0.02), Cb (0.06~0.1), Ti (≤0.01), Zr (≤0.01)
Propiedades mecánicas del acero de aleación de ASTM A335 P1
| Grado |
Resistencia a la tensión (MPa) |
Fuerza de producción (MPa) |
Alargamiento (%) |
| P11 | ≥415 | ≥205 | ≥30 |
ERW soldados con autógena instalan tubos proceso de fabricación
En la soldadura de ERW, dos electrodos, hechos generalmente del cobre, se utilizan para aplicar la presión y la corriente. Los electrodos disco-se forman y giran como los pasos materiales entre ellos. Esto permite que los electrodos entren en contacto con constantemente el material para hacer las soldaduras continuas largas.
Un transformador de soldadura suministra la baja tensión, corriente ALTERNA de gran intensidad. La junta del tubo tiene alta resistencia eléctrica en relación con el resto del circuito y es calentada a su punto de fusión por la corriente. Las superficies semi-fundidas se presionan así como una fuerza que cree un enlace de la fusión, dando por resultado una estructura uniformemente soldada con autógena.
Dimensiones de ASME/ANSI B36.10M Welded y tubería de acero labrada inconsútil
| D | Sch5s | Sch10s | Sch10 | Sch20 | Sch30 | Sch40s | STD | Sch40 | Sch60 | Sch80s | XS | Sch80 | Sch100 | Sch120 | Sch140 | Sch160 | XXS | |
| 1/8 | 10,3 | --- | 1,24 | --- | --- | --- | 1,73 | 1,73 | 1,73 | --- | 2,41 | 2,41 | 2,41 | --- | --- | --- | --- | --- |
| 1/4 | 13,7 | --- | 1,65 | --- | --- | --- | 2,24 | 2,24 | 2,24 | --- | 3,02 | 3,02 | 3,02 | --- | --- | --- | --- | --- |
| 3/8 | 17,1 | --- | 1,65 | --- | --- | --- | 2,31 | 2,31 | 2,31 | --- | 3,2 | 3,2 | 3,2 | --- | --- | --- | --- | --- |
| el 1/2 | 21,3 | 1,65 | 2,11 | --- | --- | --- | 2,77 | 2,77 | 2,77 | --- | 3,73 | 3,73 | 3,73 | --- | --- | --- | 4,78 | 7,47 |
| 3/4 | 26,7 | 1,65 | 2,11 | --- | --- | --- | 2,87 | 2,87 | 2,87 | --- | 3,91 | 3,91 | 3,91 | --- | --- | --- | 5,56 | 7,82 |
| 1 | 33,4 | 1,65 | 2,77 | --- | --- | --- | 3,38 | 3,38 | 3,38 | --- | 4,55 | 4,55 | 4,55 | --- | --- | --- | 6,35 | 9,09 |
| 1 ¼ | 42,2 | 1,65 | 2,77 | --- | --- | --- | 3,56 | 3,56 | 3,56 | --- | 4,85 | 4,85 | 4,85 | --- | --- | --- | 6,35 | 9,7 |
| 1 ½ | 48,3 | 1,65 | 2,77 | --- | --- | --- | 3,68 | 3,68 | 3,68 | --- | 5,08 | 5,08 | 5,08 | --- | --- | --- | 7,14 | 10,15 |
| 2 | 60,3 | 1,65 | 2,77 | --- | --- | --- | 3,91 | 3,91 | 3,91 | --- | 5,54 | 5,54 | 5,54 | --- | --- | --- | 8,74 | 11,07 |
| ½ 2 | 73 | 2,11 | 3,05 | --- | --- | --- | 5,16 | 5,16 | 5,16 | --- | 7,01 | 7,01 | 7,01 | --- | --- | --- | 9,53 | 14,02 |
| 3 | 88,9 | 2,11 | 3,05 | --- | --- | --- | 5,49 | 5,49 | 5,49 | --- | 7,62 | 7,62 | 7,62 | --- | --- | --- | 11,13 | 15,24 |
| ½ 3 | 101,6 | 2,11 | 3,05 | --- | --- | --- | 5,74 | 5,74 | 5,74 | --- | 8,08 | 8,08 | 8,08 | --- | --- | --- | --- | --- |
| 4 | 114,3 | 2,11 | 3,05 | --- | --- | --- | 6,02 | 6,02 | 6,02 | --- | 8,56 | 8,56 | 8,56 | --- | 11,13 | --- | 13,49 | 17,12 |
| 5 | 141,3 | 2,77 | 3,4 | --- | --- | --- | 6,55 | 6,55 | 6,55 | --- | 9,53 | 9,53 | 9,53 | --- | 12,7 | --- | 15,88 | 19,05 |
| 6 | 168,3 | 2,77 | 3,4 | --- | --- | --- | 7,11 | 7,11 | 7,11 | --- | 10,97 | 10,97 | 10,97 | --- | 14,27 | --- | 18,26 | 21,95 |
| 8 | 219,1 | 2,77 | 3,76 | --- | 6,35 | 7,04 | 8,18 | 8,18 | 8,18 | 10,31 | 12,7 | 12,7 | 12,7 | 15,09 | 18,26 | 20,62 | 23,01 | 22,23 |
| 10 | 273,1 | 3,4 | 4,19 | --- | 6,35 | 7,8 | 9,27 | 9,27 | 9,27 | 12,7 | 12,7 | 12,7 | 15,09 | 18,26 | 25,4 | 28,58 | 25,4 | 25,4 |
| 12 | 323,9 | 3,96 | 4,57 | --- | 6,35 | 8,38 | 9,53 | 9,53 | 10,31 | 14,27 | 12,7 | 12,7 | 17,48 | 21,44 | 25,4 | 28,58 | 33,32 | 25,4 |
| 14 | 355,6 | 3,96 | 4,78 | 6,35 | 7,92 | 9,53 | --- | 9,53 | 11,13 | 15,09 | --- | 12,7 | 19,05 | 23,83 | 27,79 | 31,75 | 35,71 | |
| 16 | 406,4 | 4,19 | 4,78 | 6,35 | 7,92 | 9,53 | --- | 9,53 | 12,7 | 16,66 | --- | 12,7 | 21,44 | 26,19 | 30,96 | 36,53 | 40,49 | |
| 18 | 457,2 | 4,19 | 4,78 | 6,35 | 7,92 | 11,13 | --- | 9,53 | 14,27 | 19,05 | --- | 12,7 | 23,83 | 29,36 | 34,93 | 39,67 | 45,24 | |
| 20 | 508 | 4,78 | 5,54 | 6,35 | 9,53 | 12,7 | --- | 9,53 | 15,09 | 20,62 | --- | 12,7 | 26,19 | 32,54 | 38,1 | 44,45 | 50,01 | |
| 22 | 558,8 | 4,78 | 5,54 | 6,35 | 9,53 | 12,7 | --- | 9,53 | --- | 22,23 | --- | 12,7 | 28,58 | 34,93 | 41,28 | 47,63 | 53,98 | |
| 26 | 660,4 | --- | --- | 7,92 | 12,7 | --- | --- | 9,53 | --- | --- | --- | 12,7 | ||||||
| 28 | 711,2 | --- | --- | 7,92 | 12,7 | 15,88 | --- | 9,53 | --- | --- | --- | 12,7 | ||||||
| 30 | 762 | 6,35 | 7,92 | 7,92 | 12,7 | 15,88 | --- | 9,53 | --- | --- | --- | 12,7 | ||||||
| 32 | 812,8 | --- | --- | 7,92 | 12,7 | 15,88 | 17,48 | 9,53 | 17,48 | --- | --- | 12,7 | ||||||
| 34 | 863,6 | --- | --- | 7,92 | 12,7 | 15,88 | 17,48 | 9,53 | 17,48 | --- | --- | 12,7 | ||||||
| 36 | 914,4 | --- | --- | 7,92 | 12,7 | 15,88 | 19,05 | 9,53 | 19,05 | --- | --- | 12,7 | ||||||
| 38 | 965,2 | --- | --- | --- | --- | --- | --- | 9,53 | --- | --- | --- | 12,7 | ||||||
| 40 | 1016 | --- | --- | --- | --- | --- | --- | 9,53 | --- | --- | --- | 12,7 | ||||||
| 42 | 1066,8 | --- | --- | --- | --- | --- | --- | 9,53 | --- | --- | --- | 12,7 | ||||||
| 44 | 1117,6 | --- | --- | --- | --- | --- | --- | 9,53 | --- | --- | --- | 12,7 | ||||||
| 46 | 1168,4 | --- | --- | --- | --- | --- | --- | 9,53 | --- | --- | --- | 12,7 | ||||||
| 48 | 1219,2 | --- | --- | --- | --- | --- | --- | 9,53 | --- | --- | --- | 12,7 |
Dimensiones de ASME/ANSI B36.19M Welded y tubería de acero labrada inconsútil
|
NPS (pulgadas) |
Fuera del diámetro. (milímetro) |
Grueso de pared nominal (milímetros) | |||
| Sch5S (1) | Sch10S (1) | Sch40S | Sch80S | ||
| 1/8 | 10,3 | --- | 1,24 | 1,73 | 2,41 |
| 1/4 | 13,7 | --- | 1,65 | 2,24 | 3,02 |
| 3/8 | 17,1 | --- | 1,65 | 2,31 | 3,20 |
| el 1/2 | 21,3 | 1,65 | 2,11 | 2,77 | 3,73 |
| 3/4 | 26,7 | 1,65 | 2,11 | 2,87 | 3,91 |
| 1 | 33,4 | 1,65 | 2,77 | 3,38 | 4,55 |
| 1 ¼ | 42,2 | 1,65 | 2,77 | 3,56 | 4,85 |
| 1 ½ | 48,3 | 1,65 | 2,77 | 3,68 | 5,08 |
| 2 | 60,3 | 1,65 | 2,77 | 3,91 | 5,54 |
| ½ 2 | 73 | 2,11 | 3,05 | 5,16 | 7,01 |
| 3 | 88,9 | 2,11 | 3,05 | 5,49 | 7,62 |
| ½ 3 | 101,6 | 2,11 | 3,05 | 5,74 | 8,08 |
| 4 | 114,3 | 2,11 | 3,05 | 6,02 | 8,56 |
| 5 | 141,3 | 2,77 | 3,4 | 6,55 | 9,53 |
| 6 | 168,3 | 2,77 | 3,4 | 7,11 | 10,97 |
| 8 | 219,1 | 2,77 | 3,76 | 8,18 | 12,70 |
| 10 | 273,1 | 3,40 | 4,19 | 9,27 | 12.70(2) |
| 12 | 323,9 | 3,96 | 4,57 | 9.53(2) | 12.70(2) |
| 14 | 355,6 | 3,96 | 4.78(2) | … | … |
| 16 | 406,4 | 4,19 | 4.78(2) | … | … |
| 18 | 457,2 | 4,19 | 4.78(2) | … | … |
| 20 | 508 | 4,78 | 5.54(2) | … | … |
| 22 | 558,8 | 4,78 | 5.54(2) | … | … |
| 24 | 660,4 | 5,54 | 6,35 | … | … |
| 30 | 762 | 6,35 | 7,92 | … | … |
Notas:
(1) programe 5S y los gruesos de pared 10S no permiten roscar de acuerdo con ANSI/ASME B1.20.1
(2) estas dimensiones no se ajustan a ANSI/ASME B36.1M
Tamaño, dimensiones y tolerancias del tubo soldado con autógena (milímetros)
| NPS | *t/D | Tolerancia, % del nominal | |
| 1/8" ~2,5" | Todos | +20,0 | -12,5 |
| 3" ~18" | el ≤5% | +22,5 | -12,5 |
| 3" ~18" | >el 5% | +15,0 | -12,5 |
| ≥20 “ | Todos | +17,5 | -12,5 |
| ≥20 “ | el ≤5% | +22,5 | -12,5 |
*t: grueso de pared nominal; D: ordenado fuera de diámetro.
